Avanti is the 21st Century evolution of HYTORC's largest selling 20th Century Bolting Machine. The elimination of the reaction arm around the cylinder housing does away with the usual internal torsion. HYTORC's world renown durability and reliability have been perfected.

AVANTI-DUAL

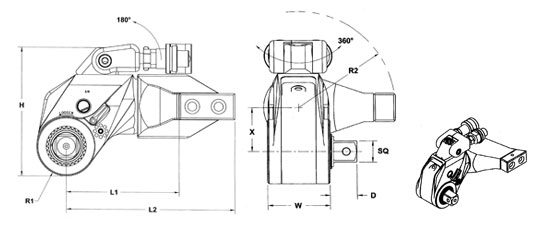

AVANTI-DUAL Dimensions

Model SQ D W X H
Avanti 1DR 3/4" .94 2.18 1.54 4.88
Avanti 3DR 1" 1.19 2.90 2.05 6.30
Avanti 5DR 1-1/2" 1.79 3.38 2.47 -
Avanti 10DR 1-1/2" 1.79 4.35 3.15 9.17
Model L1 L2 R1 R2
Avanti 1DR 4.27 6.38 1.13 3.37
Avanti 3DR 5.52 8.32 1.50 4.50
Avanti 5DR - - 1.80 -
Avanti 10DR 8.27 12.42 2.25 6.75

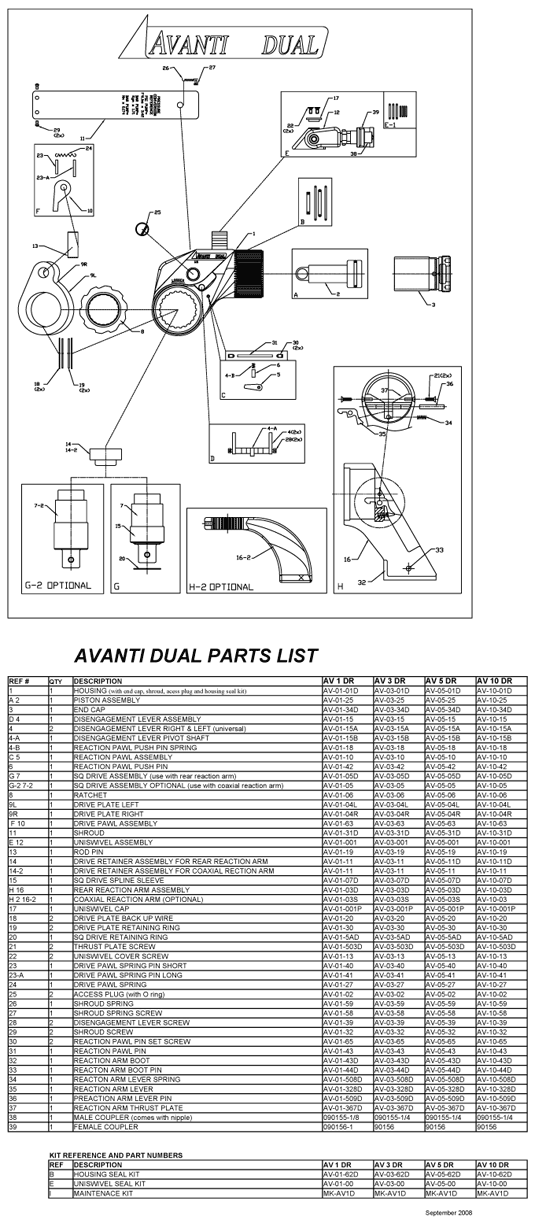

AVANTI-DUAL Parts List
  Download as Pdf file

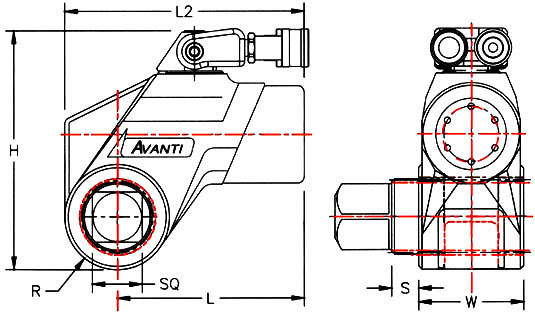

AVANTI Dimensions
Model L W L2 H R S SQ
Avanti 1 2.94 1.98 4.81 4.90 .98 .44 .75
Avanti 3 5.16 2.63 6.29 6.11 1.13 .50 1.00
Avanti 5 5.62 3.00 7.19 7.12 1.56 .78 1.50
Avanti 8 6.36 3.57 8.06 7.80 1.70 .80 1.50
Avanti 10 7.09 3.95 9.05 8.40 1.95 1.00 1.50
Avanti 20 8.50 4.73 10.86 9.80 2.36 1.25 2.50
Avanti 35 10.70 5.82 13.60 12.60 2.90 1.50 2.50
Avanti 50 11.90 6.56 15.00 13.30 3.13 1.75 2.50
Model Range
Bolt Size Torque-ftlbs Load-lbs
Avanti 1 3/4 - 1 3/8 200 - 1340 11000 - 90000
Avanti 3 1 1/4 - 2 480 - 3230 22000 -180000
Avanti 5 1 3/4 - 2 3/8 835 - 5590 33750 - 225000
Avanti 8 2 - 2 3/4 1200 - 8000 42000 - 280000
Avanti 10 2 1/4 - 3 1/4 1730 - 11520 51000 - 340000
Avanti 20 2 3/4 - 4 1/4 2960 - 19760 67000 - 446000
Avanti 35 3 - 5 5400 - 37100 106500 - 710000
Avanti 50 3 1/4 - 5 3/4 7800 - 52500 130500 - 870000

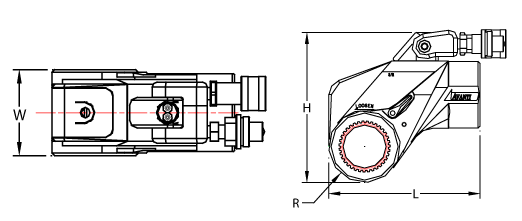

AVANTI Dimensions


Inch Size
Model R L H W Wt (lbs.)
Avanti1 1.14 4.71 4.70 2.17 3.30
Avanti 3 1.50 6.14 6.12 2.90 7.10
Avanti 5 1.80 7.36 7.10 3.38 9.80
Avanti 8 1.88 7.91 7.65 3.90 13.70
Avanti 10 2.13 9.20 8.90 4.35 20.90
Avanti 20 2.50 10.84 9.90 5.00 35.20
Avanti 35 3.01 13.06 11.93 6.02 67.20
Avanti 50 3.39 14.71 13.44 6.79 87.50
Metric Size
Model R L H W Wt (kg.)
Avanti 1 29 119.6 119.4 55.1 1.49
Avanti 3 38.1 156 155.5 73.7 3.20
Avanti 5 45.7 186.9 180.3 85.9 4.41
Avanti 8 47.8 200.9 194.3 99.1 5.17
Avanti 10 54.1 233.7 226.1 110.5 9.41
Avanti 20 63.5 275.3 251.5 127 15.84
Avanti 35 76.5 331.7 303 152.9 30.24
Avanti 50 86.1 373.6 341.4 172.5 39.38

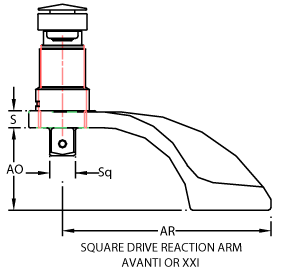

AVANTI Torque Specifications


Inch Size
Model AO AR S Sq
Avanti 1 2.38 6.09 .50 .75
Avanti 3 3.17 8.12 .75 1.00
Avanti 5 3.83 9.72 .80 1.50
Avanti 8 4.58 10.23 .88 1.50
Avanti 10 4.58 12.15 1.00 1.50
Avanti 20 5.75 14.58 1.20 2.50
Avanti 35 6.93 17.57 1.45 2.50
Avanti 50 7.80 19.79 1.63 2.50
Metric Size
Model AO AR S Sq
Avanti 1 60.3 154.7 12.7 20
Avanti 3 80.4 206.2 19.7 25
Avanti 5 104.1 247.5 20.3 40
Avanti 8 116.3 259.8 22.4 40
Avanti 10 116.3 308.6 25.4 40
Avanti 20 146.1 370.3 30.5 63
Avanti 35 176.0 446.3 36.8 63
Avanti 50 198.1 502.7 41.4 63

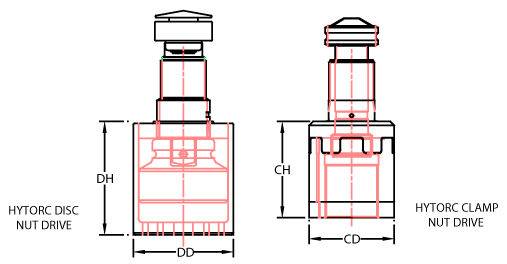

AVANTI Tension Specifications


Inch Size
Model Standard Bolt Range Hytorc Disc Hytorc Clamp
DH DD CH CD
Avanti 1 1-1.50 3.57-4.66 2.21-3.42 1.89-2.69 1.60-2.40
Avanti 3 1.375-1.875 4.74-5.59 3.23-4.41 2.78-3.46 2.20-3.00
Avanti 5 1.75-2.25 5.86-6.60 4.13-5.24 3.29-4.16 2.80-3.53
Avanti 8 2-2.5 6.06-8.13 4.76-5.67 3.75-4.50 3.20-4.00
Avanti 10 2.25-3.0 7.64-9.21 5.24-6.54 4.80-6.30 3.53-4.80
Avanti 20 2.75-3.75 8.73-10.30 6.10-8.50 5.86-7.65 4.40-6.00
Avanti 35 3.25-4.75 10.00-12.32 7.48-10.16 6.75-9.50 5.20-7.60
Avanti 50 4-5.5 11.00-13.40 8.82-11.45 8.00-10.73 6.40-8.80
Metric Size
Model Standard Bolt Range Hytorc Disc Hytorc Clamp
DH DD CH CD
Avanti 1 27 - 39 91 - 118 59 - 87 48 - 68 41 - 61
Avanti 3 36 - 48 120 - 142 82 - 112 71 - 88 56 - 76
Avanti 5 45 - 56 149 - 168 105 - 133 84 - 106 71 - 90
Avanti 8 52 - 64 154 - 207 121 - 144 95 - 114 81 - 102
Avanti 10 56 - 80 194 - 234 133 - 166 122 - 160 90 - 122
Avanti 20 72 - 95 222 - 262 155 - 216 149 - 194 112 - 152
Avanti 35 80 - 120 254 - 313 190 - 258 171 - 241 132 - 193
Avanti 50 100 - 140 279 - 340 224 - 291 203 - 273 163 - 224

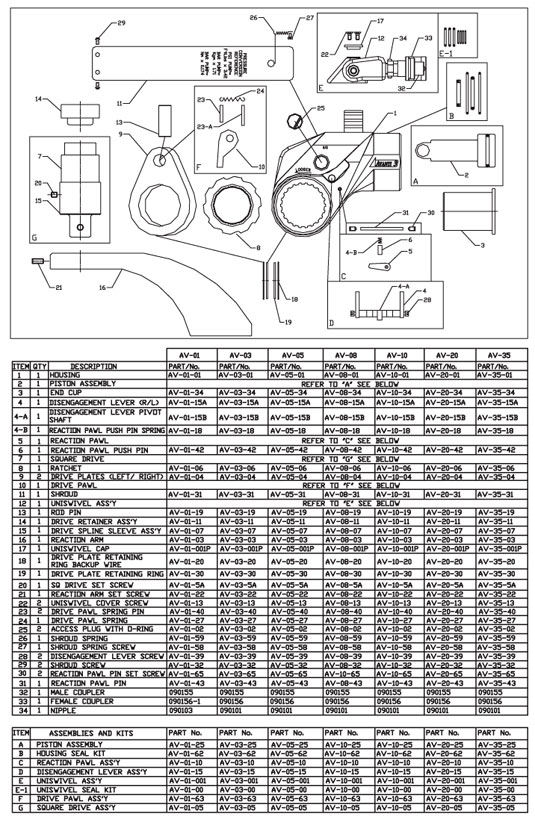

AVANTI Parts List
