THE QUICKEST WAY TO MAKE UP LEAK-FREE FLANGES.

Click in the pin and screw-free cassette for your size nut. obtain access where no other tool fits. Holding the Hytorc-disc stationary while turning the nut, torques bolts literally in seconds.

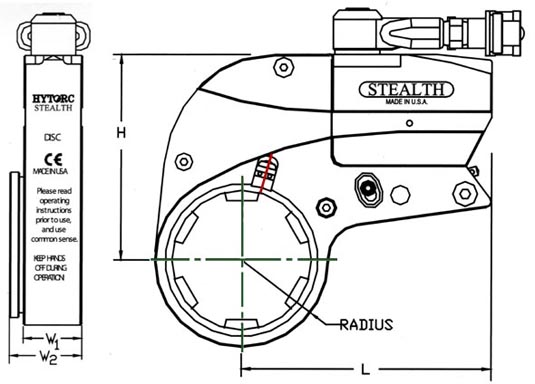

Stealth with Disc or Clamp Drive Link
Stealth with Disc or Clamp Drive Link
Model L (Inch) H (Inch) W1 (Inch) W2 (Inch)
STEALTH - 2 5.53 4.21 1.25 1.58 - 1.69
STEALTH - 4 6.58 5.43 1.66 2.00 - 2.05
STEALTH - 8 8.00 6.40 2.08 2.33 - 2.38
STEALTH - 14 9.33 7.94 2.50 2.79 - 2.92
STEALTH - 22 10.85 9.23 2.91 3.16 - 3.22
STEALTH - 35 12.66 10.78 3.39 3.64 - 3.70
Stealth with Disc or Clamp Drive Link
Model Stud (Inch)
From / To		 Radius (Inch)
From / To		 Load (Lbs)
MIN. MAX.
STEALTH - 2 3/4 to 1-3/8 1.08 / 1.73 24 400 162 300
STEALTH - 4 1-3/8 to 1-3/4 1.73 / 2.07 41 300 275 700
STEALTH - 8 1-3/4 to 2-1/2 1.85 / 2.30 56 400 379 700
STEALTH - 14 2 to 2-3/4 2.53 / 3.44 87 900 586 000
STEALTH - 22 2-3/4 to 3-3/4 3.56 / 4.39 104 000 693 800
STEALTH - 35 3-3/4 to 5-0 4.27 / 5.59 126 500 842 900

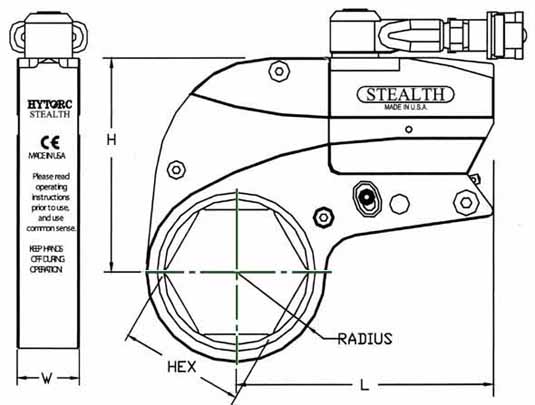

Stealth with Hex Link
Stealth with Hex Link
Model L
(Inch)		 H
(Inch)		 W1
(Inch)		 W2
(Inch)
STEALTH - 2 5.53 4.21 1.25 1.58 - 1.69
STEALTH - 4 6.58 5.43 1.66 2.00 - 2.05
STEALTH - 8 8.00 6.40 2.08 2.33 - 2.38
STEALTH - 14 9.33 7.94 2.50 2.79 - 2.92
STEALTH - 22 10.85 9.23 2.91 3.16 - 3.22
STEALTH - 35 12.66 10.78 3.39 3.64 - 3.70
Stealth with Hex Link
Model Stud (Inch)
From / To		 Radius (Inch)
From / To		 Load (Lbs)
MIN. MAX.
STEALTH - 2 3/4 to 1-3/8 1.08 / 1.73 24 400 162 300
STEALTH - 4 1-3/8 to 1-3/4 1.73 / 2.07 41 300 275 700
STEALTH - 8 1-3/4 to 2-1/2 1.85 / 2.30 56 400 379 700
STEALTH - 14 2 to 2-3/4 2.53 / 3.44 87 900 586 000
STEALTH - 22 2-3/4 to 3-3/4 3.56 / 4.39 104 000 693 800
STEALTH - 35 3-3/4 to 5-0 4.27 / 5.59 126 500 842 900

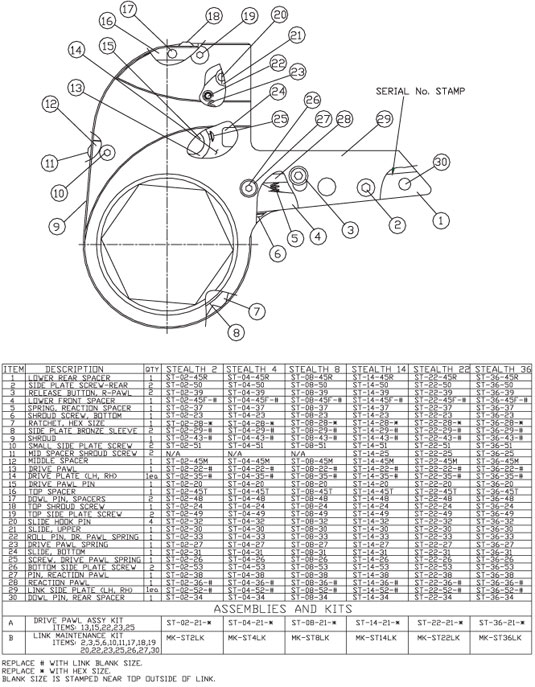

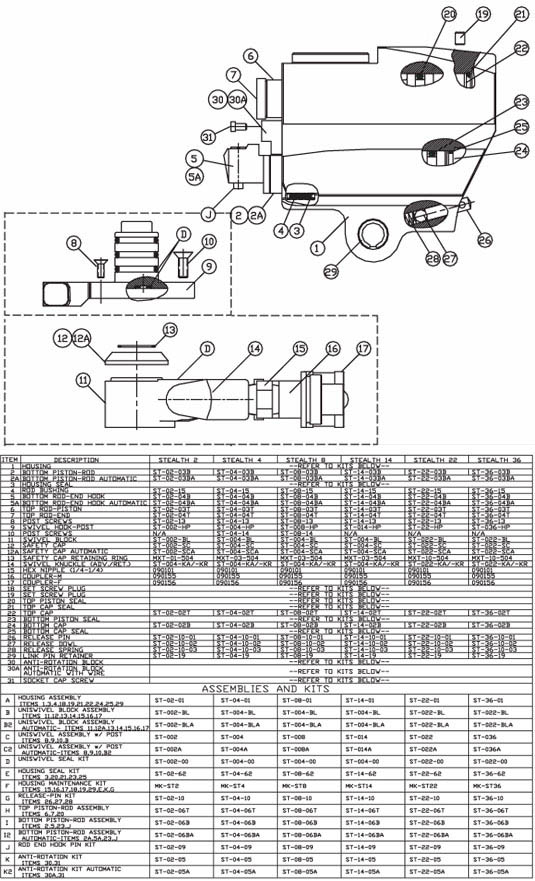

STEALTH Parts List
  Download as Pdf file
