A TRUE INDUSTRY USER'S TOOL!

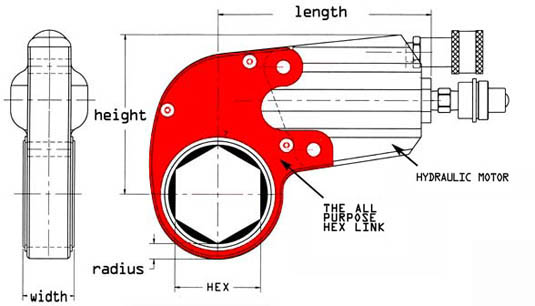

MULT-HY's LC wrench was designed for the most inaccessible bolting areas found in the industry. It's long neck, short height and small radius have all added to its great sales success. |
|
 |
| The LC Series | ||||||
| Model | Dimensions | All Purpose Link | Complete Tool Width | Weight | ||
| Hex Range | Radius | Width | Length | Height | Lbs | |
| LC2 | 1 1/4"to 2 3/16" | .400" | 1.336" | 5.500" | 4.136" | 5.2" |
| LC4 | 1 13/16"to 3 1/8" | .543" | 1.750" | 7.292" | 6.970" | 11.05" |
| LC8 | 2 3/8"to 3 7/8" | .695" | 2.188" | 9.188" | 7.527" | 20.5" |
| LC15 | 3 1/8"to 4 5/8" | .900" | 2.500" | 10.78" | 8.68" | 41.4" |
| LC30 | 3 1/8"to 6 1/8" | 1.15" | 3.0" | 12.25" | 9.93" | 62.0" |
| Hydraulic Motors | ||||
| Model | Square | Hex Range | Torque Range - Ft. Lbs. | Single/Double Acting |
| LC-2 | 3/4" | 3/4 - 2-3/8" | 160 - 1,650 | DOUBLE |
| LC-4 | 1" | 1" - 2-3/4" | 390 - 3,900 | DOUBLE |
| LC-8 | 1-1/2" | 1-1/2 - 3-1/8" | 870 - 8,700 | DOUBLE |
| LC-15 | 1-1/2" | 2-1/2 -4-5/8" | 1,500 - 15,950 | DOUBLE |
| LC-30 | 2-1/2" | 3-1/8 - 6-1/8" | 3,000 - 30,700 | DOUBLE |
