THE WORLD'S ONLY STRETCH TO LOAD BOLTING SYSTEM!

Available in pneumatic and electric power, the JETYD jGUN is the smart solution for all industries.

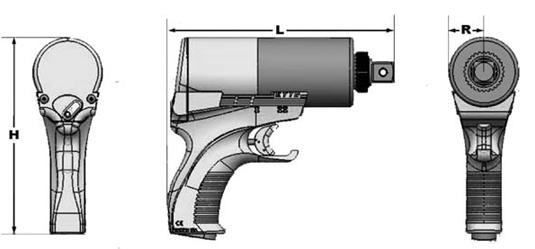

TOOL MODEL SQ DR LENGTH (L) HEIGHT (H)
in. cm in. cm
JGUN-E1 3/4" 8.63 21.92 7.06 17.93
JGUN-A1 3/4" 7.95 20.20 7.06 17.93
JGUN-A3 1" 10.70 27.18 7.31 18.57
JGUN-A5 1&1/2" 13.02 33.07 7.91 20.09
TOOL MODEL SQ DR RADIUS (R) WEIGHT (W)
in. cm lbs kg
JGUN-E1 3/4" 1.25 3.175 8 3.63
JGUN-A1 3/4" 1.25 3.170 8 3.63
JGUN-A3 1" 1.5 3.810 12 5.44
JGUN-A5 1&1/2" 1.75 4.445 18 8.16
TOOL MODEL SQ DR TORQUE
MIN MAX
LB-FT Nm LB-FT Nm
JGUN-E1 3/4" 75 102 1000 1356
JGUN-A1 3/4" 95 129 1300 1763
JGUN-A3 1" 225 305 3100 4203
JGUN-A5 1&1/2" 375 508 5200 7050
    Calibrated torque within 5%
TOOL MODEL SQ DR LOAD PSI CFM
MIN MAX MAX MAX
lbs kN lbs kN
JGUN-E1 3/4" 5050 22 67250 299 * *
JGUN-A1 3/4" 6400 28 87500 389 75 24
JGUN-A3 1" 11150 50 153500 683 75 24
JGUN-A5 1&1/2" 15150 67 210000 934 85 29
    Calibrated bolt load within 10%
