THE SAFEST HYDRAULIC WRENCH WITH "HANDS FREE" OPERATION

The HYTORC XXI continuous rotation square drive Torque/Tension Bolting Machine is equipped with inter-changeable, interacting, coaxial driving and holding sockets for 360 degree tool fit.

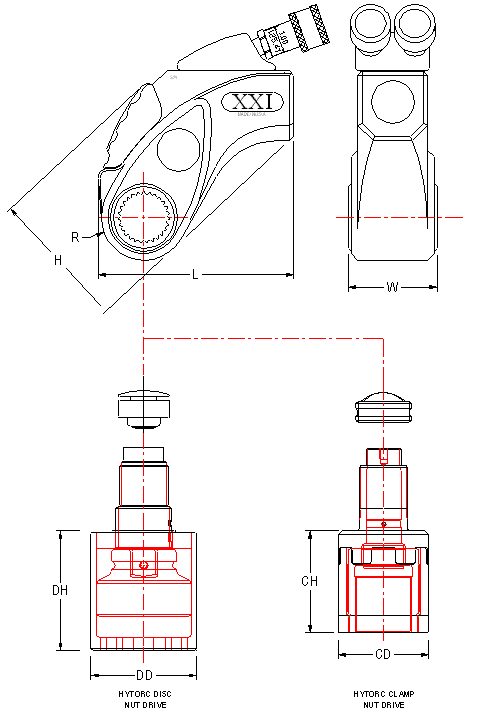

XXI Dimensions
Inch Size
Model R L H W Tool Wt. lbs Bolt Range
XXI-1 1.188 5.456 3.940 2.480 5.7 1 - 1 1/2
XXI-3 1.583 7.275 5.150 3.307 12.7 1 3/8 - 1 7/8
XXI-5 1.900 8.620 6.100 3.918 19.7 1 3/4 - 2 1/4
Inch Size
Model Sq Tool Wt. lbs DH DD CH CD
XXI-1 .750 9.9 3.57-4.66 2.21-3.42 1.89-2.69 1.60-2.40
XXI-3 1.000 22.8 4.74-5.59 3.23-4.41 2.78-3.46 2.20-3.00
XXI-5 1.500 35.4 5.86-6.60 4.13-5.24 3.29-4.16 2.80-3.53
Metric Size
Model R L H W Tool Wt. kg Bolt Range
XXI-1 30.2 138.6 100.1 61 2.59 27 - 39
XXI-3 40.2 184.8 130.8 84 5.76 36 - 48
XXI-5 48.3 219 154.9 99.5 8.94 45 - 56
Metric Size
Model Sq Tool Wt. kg DH DD CH CD
XXI-1 20 4.49 91 - 118 56 - 87 48 - 68 41 - 61
XXI-3 25 10.34 120 - 142 82 - 112 71 - 88 56 - 76
XXI-5 40 16.06 149 - 168 105 - 133 84 - 106 71 - 90

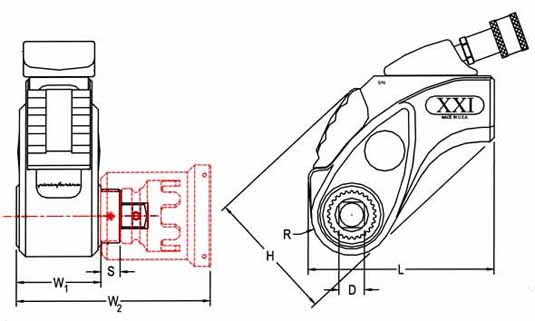

XXI with Disc or Clamp Drive

XXI with Disc or Clamp Drive
Model R L H W1 W2
XXI-1 1.188 5.456 3.940 2.480 5.615-6.015
XXI-3 1.583 7.275 5.150 3.307 7.282-7.582
XXI-5 1.900 8.620 6.100 3.918 8.818-9.583
XXI-8 2.011 9.846 7.212 4.154 9.444-9.964
XXI with Disc or Clamp Drive
Model D S wt(lbs) LOAD(Lbs)
MIN. MAX.
XXI-1 .750 .500 6.7 14 400 116 100
XXI-3 1.000 .777 15.1 30 400 207 400
XXI-5 1.500 .800 23.5 44 650 318 800
XXI-8 1.500 .944 32.5 69 100 412 300

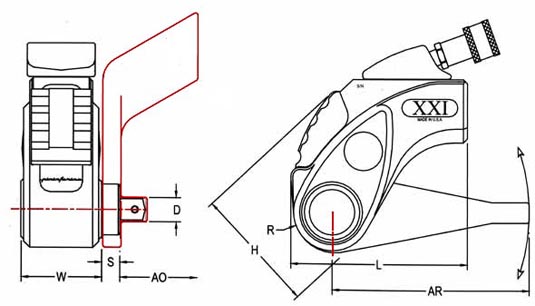

XXI with Impact Socket Drive
XXI with Impact Socket Drive
Model R L H W1 D S
XXI-1 1.188 5.456 3.940 2.480 .750 .500
XXI-3 1.583 7.275 5.150 3.307 1.000 .777
XXI-5 1.900 8.620 6.100 3.918 1.500 .800
XXI-8 2.011 9.846 7.212 4.154 1.500 .944
XXI with Impact Socket Drive
Model AO AR wt(Lbs) Torque (FtLbs)
W/OUT ARM W/ARM MIN. MAX.
XXI-1 2.375 6.090 6.7 9.9 165 1330
XXI-3 3.167 8.120 15.1 22.8 475 3240
XXI-5 4.100 9.744 23.5 35.4 837 5978
XXI-8 4.582 10.313 32.5 49.6 1440 8590

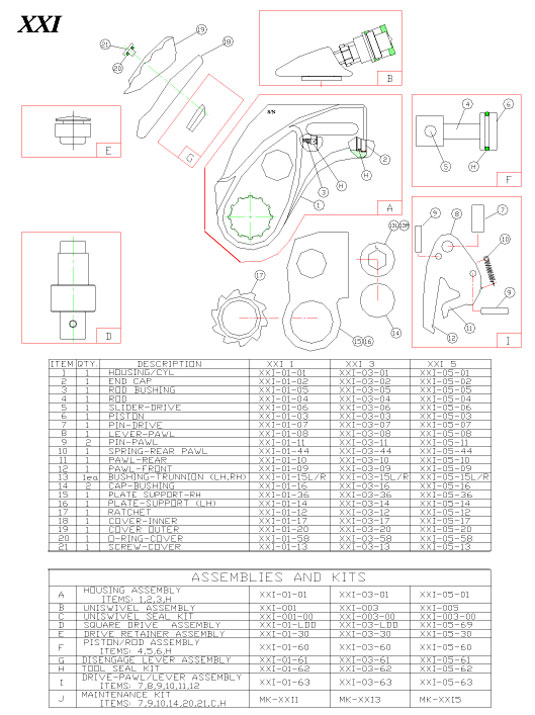

XXI Parts List
  Download as Pdf file
