HYDRAULIC PUMP COMPARISON

The value of a Pump can be established by its weight to flow ratio. The less flow/lb. weight, the older its technology and the more likely the pump is not made for use with Hydraulic Torque Tools.

Unlike other hydraulic tools, Hydraulic Torque Tools require continuous cycling. Old technology does not work. It is prone to fail.

HYTORC Hydraulic Pumps are the latest Technology, - guaranteed to provide Reliability and Speed. Compare its weight to flow ratio. Then check out its automated feature. Just push a button, get automated cycling and beat the speed of an electric Nut-runner with a lighter and smaller tool.

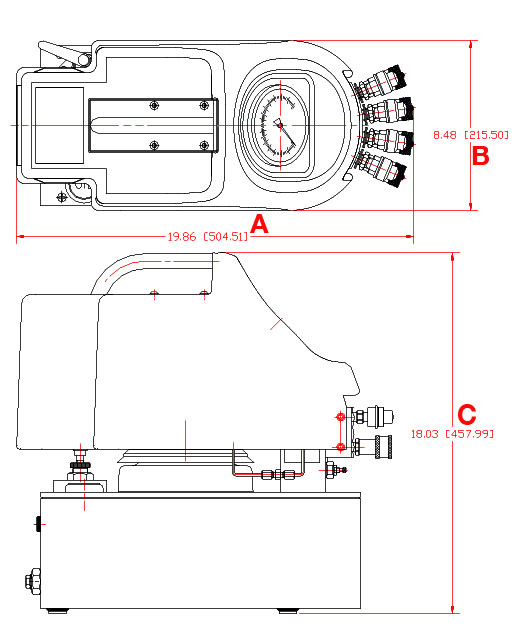

JET-SST Dimensions
JET-SST
Dimensions A B C
19.8" 8.4" 18.0"
Quadraulic™ system comes standard & ready to use with silencer
Power 1st Stage:
720 cu. in.		 2nd Stage:
55-60 cu.in
Remote 110V or 220V The JET-STAR™, is the First slim-line Power-pack to simplify portability. 4 tool connect for Simultorc™ application and complete with Silencer and the new All-tool-pressure valve, make it ideal for all jobs. 15' hoses and remote included.
Quadraulic™ YES
Weight YES
57 lbs.
15' Hoses Included
Heat Exchanger On Request

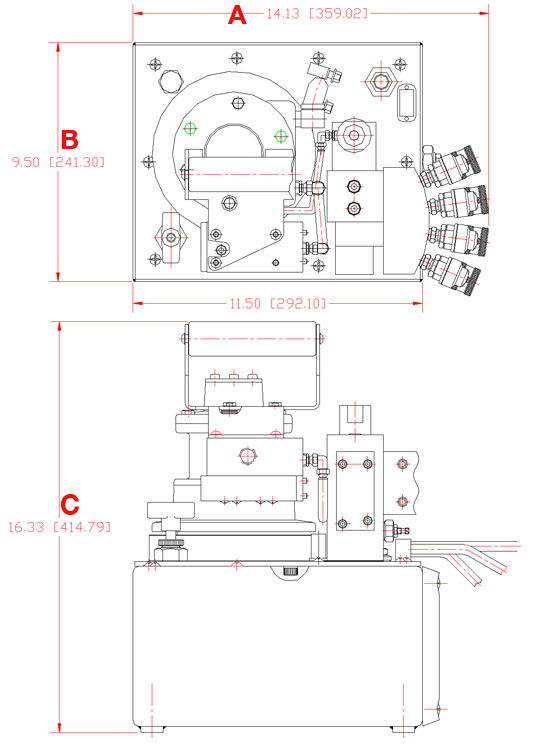

JET-RSST Dimensions
JET-RSST
Dimensions A B C
14.1" 9.5" 16.3"
Quadraulic™ system comes standard & ready to use
Oil Flow 1st Stage:
640 cu. in.		 2nd Stage:
55-60 cu.in
Min Air 70 psi
(5 bar)		 The JET-AIR™, heavy-duty, explosion-proof pump is a silent, low-height pump, which operates with merely 70 psi air pressure. 4 tool connect for Simultorc™ application, oil filter/lubricator, All-tool-pressure valve.
Remote YES
Quadraulic™ YES
Weight 52 lbs.
15' Hoses Included
Inter-cooler Included
Jet Series Specifications
Power Pack Model The Difference is the weight to Flow Ratio
JET-SST HY-QAS-A Flow Weight Flow/lb. Weight
720 cu. in.

58 Ibs. 12.4
Power Features
115/230 volt Automatic
4-Port
Self-Coolant
Auto-Off
Remote-Control
Temp. Gauge
Oil Gauge
Precision Valve
10,000 psi
Quick-Connect
Rugged

Power Pack Model The Difference is the weight to Flow Ratio
JET-RSST HYTORC AIR Flow Weight Flow/lb. Weight
640 cu. in.

55 Ibs. 11.6
Power Features
Air Driven 4-Port
Inter Cooled
Low Maintenance
Remote-Control
Temp. Gauge
Oil Gauge
Precision Valve
10,000 psi
Quick-Connect
Low Noise Oper.
Power Pack Model The Difference is the weight to Flow Ratio
JET-PRO JET PRO-A Flow Weight Flow/lb. Weight
200 cu. in.

28 Ibs. 7.1
Power Features
115/230 volt Automatic
2-Port
Portable
Confined Oper.
Remote-Control
Low Volt Oper.
Oil Gauge
Precision Valve
10,000 psi
Quick-Connect
Low Noise Oper.
Hydraulic Air Pump High Performance at an Economical Price
RSST-20 Specifications
Source Pneumatic
Requirement 60-100 psi
Max. Oil Flow 640 Cu in./min
Remote 6.0m Standard
Hose Length 4.5m Standard
Gauge 4” Dia. 10,000 PSI
Weight 24 Kgs
Benefits
  • Operated via Remote Control
  • Micro-Seat Pressure Regulator
  • 1 Gallon Reservoir with Heavy Duty Roll Cage
  • For All Single or Double Acting Cylinders
  • Exclusive Pneumatically Operated Control Value
  • With Auto Release Oil Pressure Valve
HYTORC Air pumps are shipped complete with a hose, ready to use.This NEW high-flow, light-weight, portable pump is built for years of maintenance-free use. Its Inter-Cool-System, invented by HYTORC, permits continuous use in all climates and eliminates Oil-Heat-Up. Models may change very slightly depending on availability.
Hydraulic Air Pump High Performance at an Economical Price
TWIN RSST Specifications
Source Pneumatic Air
Requirement 100+ PSI / 7+ BAR
Max. Oil Flow 1200 cu.in/min
Remote 5.0m Standard
Hose Length 4.5m Standard
Gauge 4” Dia. 10,000 PSI
Weight 44kgs / 97lbs
Benefits
  • Operated via Air Remote Control
  • Micro-Seat Pressure Regulator
  • 19 LitreReservoir with Heavy Duty Roll Cage
  • For All Single or Double Acting Cylinders
  • Exclusive Directional Control Value
  • With Auto Release Oil Pressure Valve
Doubling the benefits of the RSST Pump is accomplished with HYTORC’s Super-Charged TWIN-RSST. This high flow Maintenance and Production Pump permits the simultaneous use of multiple tools. Where flanges have had to be tightened with pre-torque in a criss-cross manner, the job is done immediately at full torque with 3 or 4 HYTORC TORQUE/TENSION MACHINES connected to this pump. This is the way to go if you want a tight flange in the shortest period of time.
Hydraulic Pump High Performance at an Economical Price
SST Added Features
  1. Roll Cage to protect unit
  2. Hose kit 4.5 metre non-conductive for safety to operator
  3. Larger Oil Sump for extended operation
  4. Stainless Steel screws in all areas exposed to atmosphere
  5. Paint protection added to prevent corrosion on all exposed areas.
  6. 4" heavy Duty Pressure gauge for accuracy and longevity
  7. Modified Directional Control Valve for operation at altitude
  8. Pendant / Hand Set extended to 6 metres
  9. Internal Basic Pump assembly changed to suit altitude conditions.
  10. Pressure regulator changed for operator friendly use.
Benefits
  • Operated via Remote Control
  • Micro-Seat Pressure Regulator
  • 1 Gallon Reservoir with Center Lift Handle
  • For All Single or Double Acting Cylinders
  • Exclusive Electrically Operated Control Value
  • With Auto Release Oil Pressure Valve
Electric Power Pack High Performance at an Economical Price
TWIN SST Added Features
  • Equipped with two 1-1/2 HP Pumps
  • 1000 to 10 000 PSI Pressure Range
  • 19"L x 11-1/2"W x 18-1/2"H
  • 101Lbs
  • Flow Rate from 1400 CIPM Max to 110 CIPM Min
  • Power Requirements 230V, 10A
  • Single Phase
  • Safety Pressure Adjustment Knob and lock nut
  • Fine Mesh Brass Filter
  • 15 Foot Safety Low Voltage (24V) Remote Control
  • 15 Foot Twin-line Hose with 4:1 Safety Factor
  • 10 000 PSI Gauge
  • 5 Gallon Reservoir
  • Quick connect Four Port Manifold for Simul-Torc
MULT-HY Series Specifications
Model High-Speed, Light-Weight, Cycle-Proof Packs
XM Weight
5 lbs.		 - Oil Flows
10 cu. in./min.

The World's First, Two-Stage Trigger-Release Manual Pump!

This light-weight portable Pump operates all single Line, 1,000 psi Hydraulic Tools. Complete with gauge, connectors and 5" house, it's the ideal pump for use in remote areas.
XR Weight
15 lbs.		 Min Air
20 cfm 		Oil Flows
68 cu. in./min.

The Reliable, Foot-Pedal Operated Air Pump!

Light-weight and economical Hydraulic Pump for all 10,000 psi tools. This pressure-adjustable pump is supplied with gauge, oil and 15" hose ready to use with your single hose tool.
XL Weight
33 lbs.		 Volt
115/230		 Oil Flows
200 cu. in./min.

The Lightest, Heavy-duty, Electric 2 Stage Power Pack!

Incredibly fast, yet below 30 lbs. weight with oil, this remote controlled, 10, 000 psi Pump is the one others are judged by. It's small size makes it ideal for tight areas where the job has to be done fast!
MULT230 Weight
41 lbs.		 Volt
115		 Oil Flows
380 cu. in./min.

The Work Horse of MULT-HY
Pumps for continuous use!

These air or electric driven Hydraulic Pumps are engineered for continuous, non-stop use in harsh environments. If used on Torque Tools, Jacks, Cutters, Presses or Bending equipment, their reliability is unmatched by any other Hydraulic Power Pack.

Upto 4 tools can be operated simultaneously due to the high flow of these light-weight pumps. These fully remote-controlled Units come ready-to-use.
XXA Weight
43 lbs.		 Min Air
40 cfm 		Oil Flows
380 cu. in./min.

These air or electric driven Hydraulic Pumps are engineered for continuous, non-stop use in harsh environments. If used on Torque Tools, Jacks, Cutters, Presses or Bending equipment, their reliability is unmatched by any other Hydraulic Power Pack.

Upto 4 tools can be operated simultaneously due to the high flow of these light-weight pumps. These fully remote-controlled Units come ready-to-use.
*PLEASE NOTE
THAT THE AUTOMATED OR AeA SYSTEM IS NOT RECOMMENDED FOR EXPLOSIVE OR VOLATILE ENVIRONMENTS
*FOR AeA AUTOMATIC TOOL SYSTEM ADD THE LETTER 'A' TO THE PUMP MODEL
